Simple 430 FM TX
If you want to make and test your own handmade transmitting equipment, you can make the HF CW transmitter with crystal oscillator. You can receive your CW signal with your HF transceiver. The transceiver in these days has an ability of "wide band receiver". It is easiest way for you, if you have HF transceiver. But if you have only 430 FM handy, please make this gear to start your handmade activity.

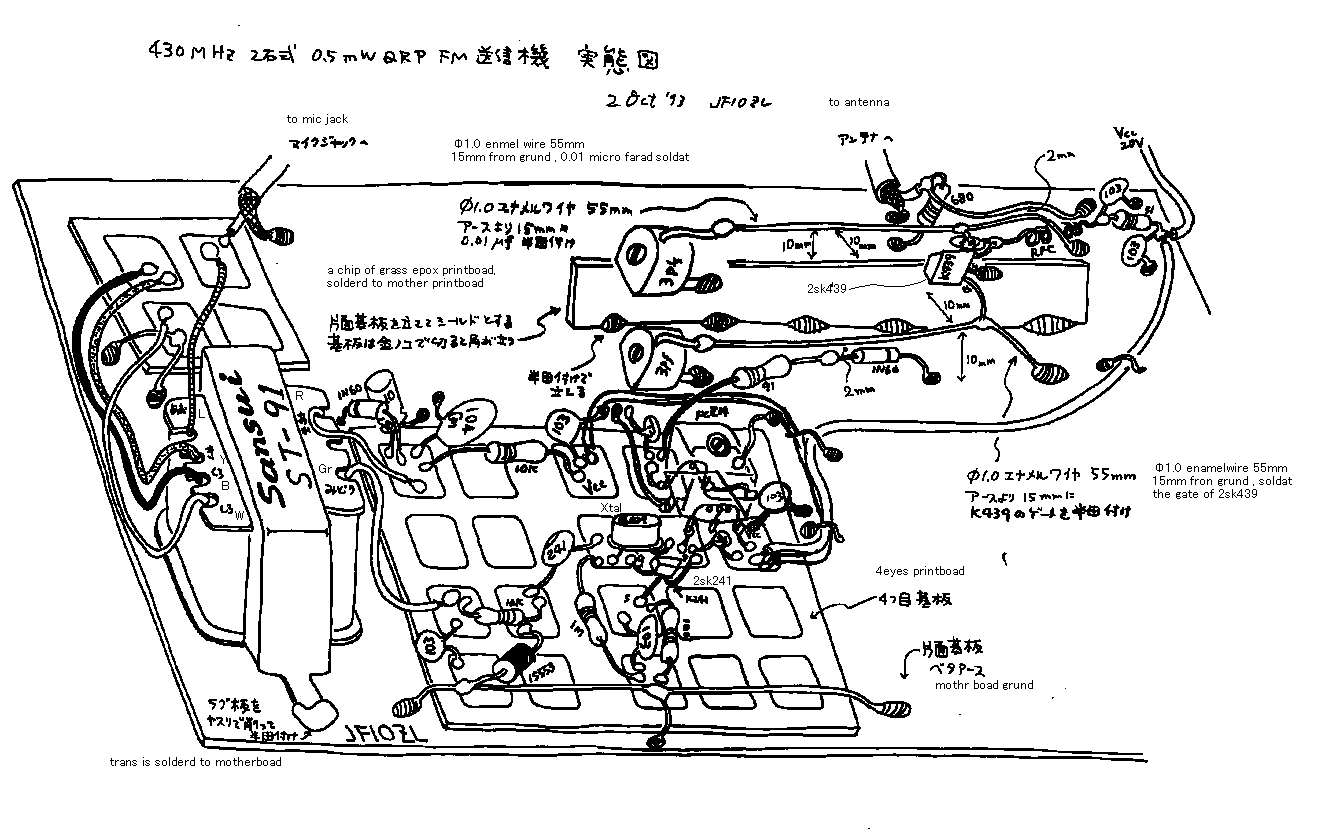

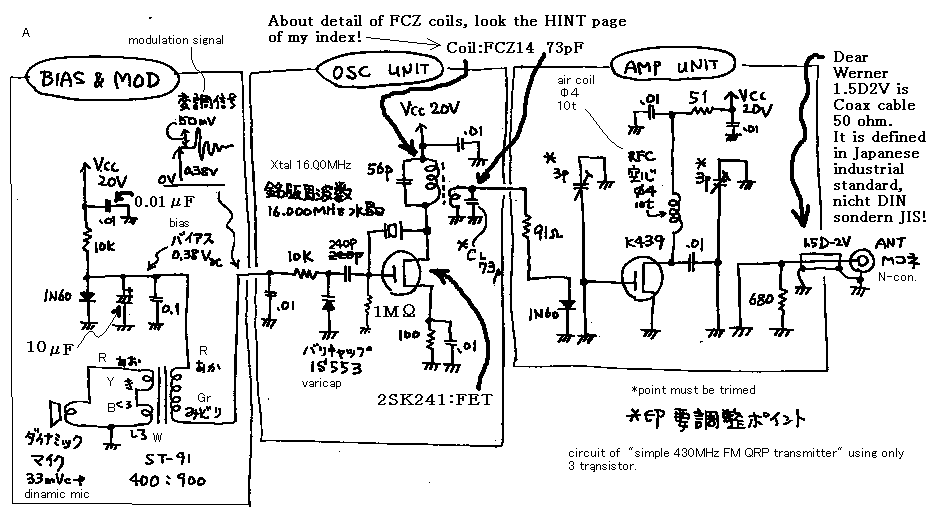

This is a very simple 430MHz band FM transmitter. This transmitter uses only 2 FET-transistors. Please see the circuit!
On the center of the circuit, there is an oscillator unit. Oscillator unit makes 16MHz signal with its crystal. The oscillating frequency is changed by Varicap diode. I use the dynamic microphone. And the audio signal is transformed for 50mV center to peak signal biased for 380mV DC by the bias circuit. 16MHz radio frequency signal is multiplied 27 times by the diode multiplier. Only with the oscillator and diode multiplier, you can get 432MHz FM modulated signal. And, you can test it arranging this transmitter and 430 FM receivers side by side on the desk. I made simple amplifier with 2sk439=FET. The output power is not milli-watt class but micro watt class, and I can make QSO about 20 meters with AMP version. This transmitter is too QRP to make normal QSO, but it is very easy to build. I think this is good circuit for the first step to build the amateur equipment.

I introduce the charactor of FET.

2SK241: Mkaer=Toshiba: useage= FM VHF RF Amplifier: Mos FET: Vmax=20V: Idss=10mA: gm=10mS: Cis=3pF: Crs=0.035pF: Power gain=28dB typical on 100MHz

2SK241: Mkaer=HItachi: useage= VHF RF Amplifier: Mos FET: Vmax=20V: Idss=10mA: gm=10mS: Cis=2.5pF: Crs=0.03pF: Power gain=30dB typical on 100MHz

2SK241 and 2SK439 are Japanese famous Mos FET for small signal amplifier. 2SK241 is a little more famous than 2SK439. Thay say 2SK439 is littele more stable than 2SK241. Crs is refrecting factor. Please choose the FET having small Crs acceptable on your country! Please inform me what type of FET is acceptable in USA or Germany,

簡単な 430 周波数変調送信機

送信機自体を作ってみるならHF帯のCW送信機が一番作りやすいですし、実用性もあります。しかし、430のハンディー送信機は大変に多くのアマチュア無線家がもっていらっしゃいますので、その意味では自作をここから始めるのも一つの方法かと想いここに紹介するものです。たった2石式でFM送信機が実験できますが、通信距離は20m程度です。回路図をご覧ください。この送信機は3つのブロックに別れています。真ん中が心臓部の発振回路で、水晶発振器によって16MHzを発振します。この発振器はバリキャップによって発振周波数を可変できる様になっています。一方、音声信号はダイナミックマイクで電気信号に変えられ、低周波トランスで昇圧されます。それと同時に、1N60というゲルマニウムダイオードを使った定電圧回路で作った0.38Vが加えられるので、0.38Vを中心に(バイアスされて)片振幅が50mV程度の信号となり、これが発振器のバリキャップの容量を変化させる様になっています。ここで発振された16MHz信号は一挙に27逓倍されて、432MHzとなります。逓倍機といっても、16MHz信号を歪ませる為のゲルマニウムダイオードに 印加して高調波を発生させて、これと電磁結合させた共振機(といっても55mmの長さのエナメル線と3PFの半固定コンデンサーをつないだ物)に2mmの空間を超えて伝え、432MHzを取り出しています。ここまででもつまり次の増幅器無しでも同じ机の上なら送信実験ができます。次に、2SK439というFETで1石式増幅器を着けても出力はマイクロワット程度ですので、通達距離は先ほど説明した様に20m程度でした。
