Experiment of photo communication 光通信の実験

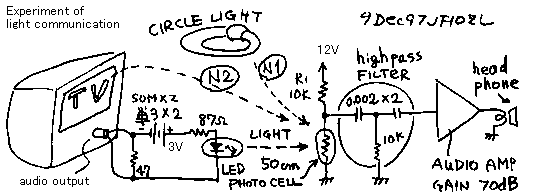

I made a experiment about light communication. ** In these days , many light communication systems are used in our life, for example touch less key of my car, remote control box of TV or video, remote mouse or remote key of desktop computer etr,. I decided to make wireless receiver of audio of TV. See figure! Audio signal modulates the strength of light made by LED. LED is also activated by 3V battery for the bias of current. The light is received by the photo cell and exchanged to the electoric signal. This signal is amplified by audio amplifier. The high pass filter is put between the photo cell and the amplifier. It reduces the noise made by fluorescent light ( N1 on the figure ). Fluorescent light twinkles 100 times per second in japan. It made many noise for this system. ** This system acts perfectly. I can hear the audio signal of TV program. But after making this system, I could understand why such a system is not sold in the electoric shop. This system is interfered by light even after using high pass filter. (This is photo interfare.) This system also be interfered by the display of the TV set itself ( N2 of the figure ). Therefore the transmitter of this system must be located on the other side of the receiver. Therefore a pair of long wire must be used to connect the LED and the TV set. It is not so useful, is it? ----光通信の実験----photo.gif
光コミュニケーションについて実験をしました.近頃では,多くの光通信システムが,我々の生活に使われています。例えば,デスクトップ・コンピュータのリモートマウス,あるいはリモートのキー、車のキーレスエントリー,テレビあるいはビデオの遠隔操作箱等。私は,テレビの音声を光で遠隔受信する物を作ってみようと思いました.図を見て下さい! オーディオのシグナルは,LEDによって作られた光の強さを加減します.LEDは,また同時にバイアス電流を流しておくために3V 電池によって駆動されています.この光は,フォトセルが受け取って,電気信号に変換されます.この信号は,オーディオの増幅器によって拡大されます.ハイパスフィルターが,フォトセルと増幅器の間に置かれています.それは,蛍光燈によって発生するノイズを取り除きます.蛍光燈は,一秒間当たり100回ぴかぴか光ります.それは,このシステムを妨害する多くのノイズを発生します.** このシステムは,完全に動作します.私は,テレビ番組の音声を聞くことができました.しかし,このシステムを作った後で,電気やさんでこのようなシステムが,売られない理由を理解することができました.ハイパスフィルターを使った後でさえ,このシステムは,蛍光燈によって多分に妨害されます.(これは光妨害という新しい概念ですHIHI)。このシステムは,また,テレビセット自身のディスプレイによって邪魔されます.それゆえに,このシステムの光送信機はテレビ受像機から離れた場所に置かざるを得ません.それで,光送信機すなわちLEDとテレビセットを結ぶために一組の長い電線を使わなくてはなりません.それでは,あんまり役に立ちません.そうでしょう?
