Signal generator to adjust a ssb-transmitter.

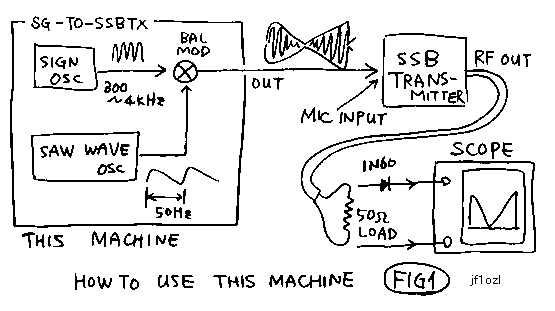

I will show you my handmade signal generator made to adjust a hand made ssb transmitter. See photo1! This machine oscillate such a signal. See fig1! This signal is made by double-balanced-modulator-IC(TA7320) by multiplying a sign wave and a saw signal. This signal is inserted to a microphone input of a ssb transmitter. And the radio frequency signal of a transmitter is monitored by a oscilloscope after detector(1N60). See photo2 and photo3! this photo indicates the output signal of my 50MHz ssb transceiver. Photo2 indicates of 100mW output of it. Photo3 indicates of 2W output of it. 100mW signal has a good linearity. 2W signal indicates that my signal has a good limiter characteristic.

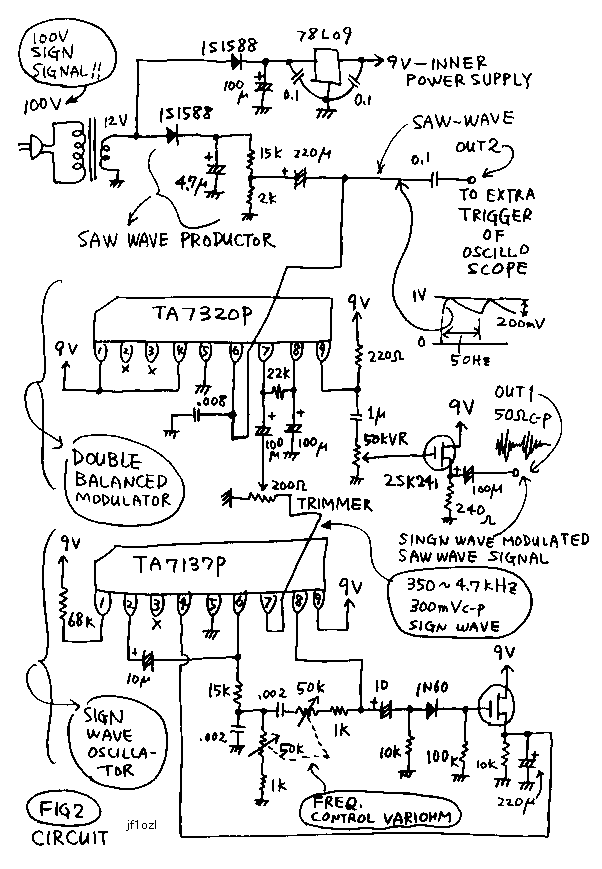

See fig2! This is circuit of this machine. TA7137 is an IC made to a mic AMP of a tape recorder auto gain control. This IC makes good sine wave from 350Hz to 4.5kHz. Saw wave is made from 100V-AC by diode and a simple integrator. Ta7320 is a modulator. It multiples a saw signal with sine wave. Output level is changed by 50kohm variohm. 2sk241 is buffer. With this machine , I can adjust also a band pass characteristic of an crystal filter by changing a frequency of sine wave.

SSB送信機調節用シグナルジェネレーター
自作SSBトランスミッターを調節するための手製の信号発生器を紹介します.photo1 を見て下さい! このマシンは,このような信号を発振します.fig1 を見て下さい! この信号は,モジュレーターIC ( TA7320 )が、サイン波形と,のこぎり波形を掛け合わせる事によって作られています.この信号は,SSBトランスミッターのマイク入力に印加されます.そして,送信機の無線周波数信号は,検波器( 1N60 ) の後で、オシロスコープによって観察されます.写真2と3を見て下さい! この写真は,私の50MHz SSBトランシーバーの出力信号を示します.写真2は,その100mW 出力を示します.写真3は,その2W 出力を示します.100mW シグナルは,よい直線性を持っています.2W シグナルは,私の信号が,よいリミッター特性を持っていることを表します.
図2を見てください! これは,このマシンの回路図です.TA7137 は,テープレコーダーのオートゲインのマイクアンプ用に作られたIC です.このIC は,4.5kHzから350Hz のきれいなサイン波形を作ります.のこぎり波形は,ダイオード,および簡単な積分器によって100V-AC から作られます.TA7320 は,ダブルバランスドモジュレーター用ICです.この機械の出力である、サイン波形で変調されたのこぎり信号のレベルが,50kオームのバリオームによって変えられます.2SK241 は,緩衝増幅器です.このマシンで,私は,サイン波形の周波数を変えることによって水晶フィルターのバンドパス特性もまた調節することができます.
