50MHzCW,transceiver using only 2 transistor

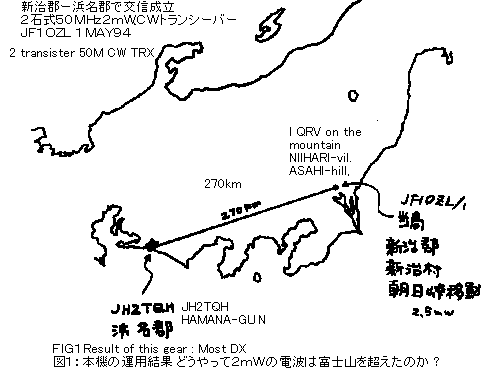

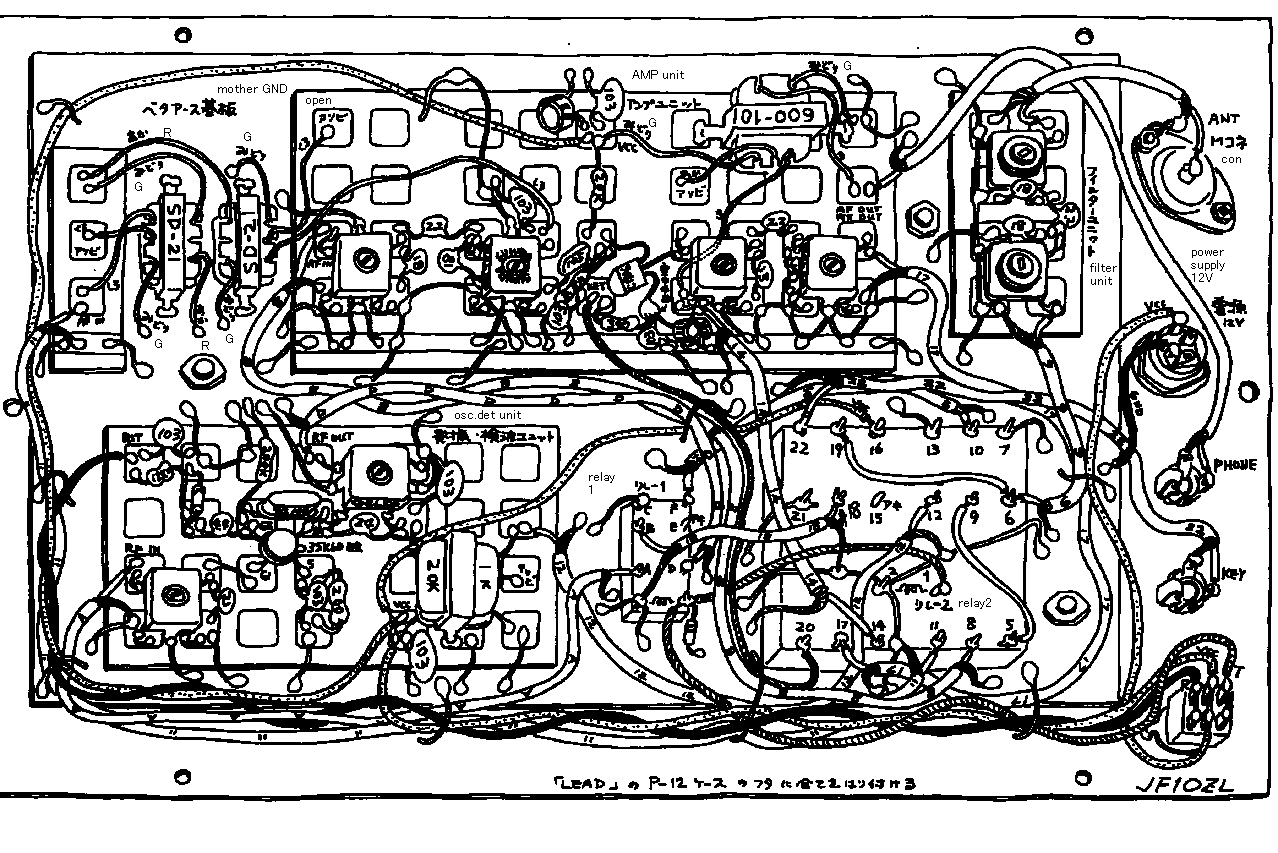

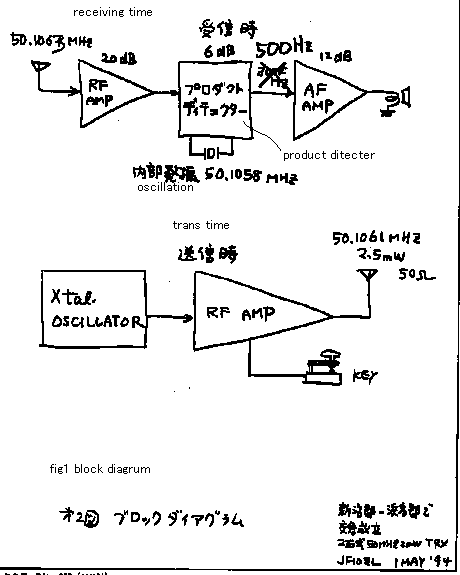

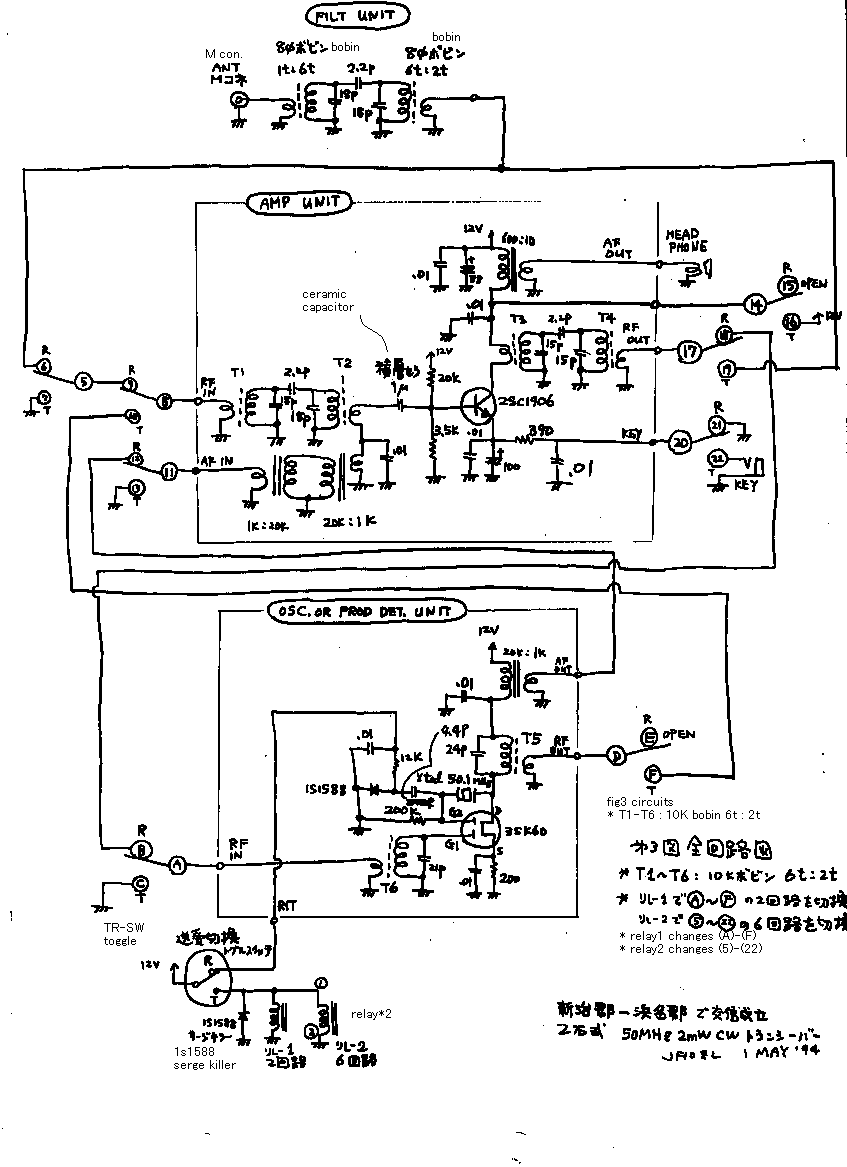

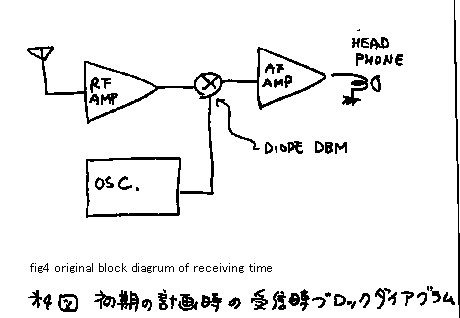

I recognized again that CW can make easy QSO than SSB by QRP. I made CW transceiver with only 2 transistors. And I made 270Km (fig 1) QSO by it. See fig 2! This is block-diagram of this machine. Receiver is direct conversion, with RF and AF amplifier. Transmitter is two stages. See fig3. AF and RF amplifier is constructed by one transistor. It is a type of reflex. Product detector is constructed by a double-gate-FET. G2 makes oscillation. G1 makes mixing. And in the transmitting time 3SK60 works as an oscillator. 2SC1906 is final AMP. The emitter of final is connected for key. 2 relays are used to change many connections inside of this transceiver. And many small circuits are connected by 1.5D2V wire. See fig 6. One night, I went to the ASAHI-hill. I made QSO with 5 stations. See table1. I made 270km QSO with this machine.

2石式50MHzCWトランシーバー

CW トランシーバーをたった2個の トランジスターで作り.それで270Km ( 図1 ) の距離とQSOできました.このマシンのブロックダイヤグラムは、図2 を見て下さい.受信機は高周波,および可聴周波数増幅器付きの,直接変換(ダイレクトコンバージョン)方式です.トランスミッターは,2 段階式です.図3 を見て下さい.可聴周波数,および高周波増幅器は1個の トランジスターによって構成されています。.それは,一種のレフレックスです.プロダクトディテクターは,デュアルゲートFET で作られています.G2 が,局発を構成しています.G1は,混合器を構成します.
また、送信中は、3SK60は,発振器として動作します.2SC1906 は、終段増幅器です.ファイナルのエミッターは,電鍵につながっています.2個のリレーが,多くのポイントを切り換えるために使われています.そして多くの小さい回路は、同軸ケーブル1.5D2Vによって結線されています.図6を見てください. ある夜,私は,朝日丘に行きました.私は,CQをだして5局とQSOしました.表1 を見て下さい.私は,最遠270km QSO をこのマシンで記録しました.









50mcw5.gif is replaced with following table, in order to save memory.

Table1 : Result of one day expedition on my neighber hill 300m high "Asahi hill".
All QSO was made on 5 May 1994

テーブル1 : 新治郡朝日峠300mHでの1日の運用結果。全て1994年5月1日のQSO
time(jst) QSOwith RSTsend RSTreceiv QTH Distance(km)
2115 JH2TQH 559 419 hamanahgun 270
2130 JH1CHA 559 309 Nakagun 30
2150 JI1AAZ 559 419 Urawacity 60
2201 JK1TMP 569 419 Fujisawacity 120
2226 JO1RAD 579 559 Toridecity 30
