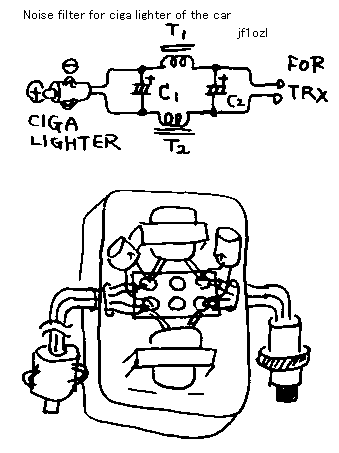

Noise filter for ciga lighte rof the car------noise.gif

Noise killer
I go sometimes on the hill in order to make a local expedition with my car. I get a power from the cigar lighter of my car. The power of the car has the noise of the ignition and alternator. These noises are heard on the receiver. Therefore I made noise killer. The transformer is fly wheel transformer of a switching power supply. 0.8mm diameter enamel wire is used in it. Capacitor is 1000 micro farad 24V. The case is a lunch box.

E mail letter between JF1OZL and Darrol

Yes, you have my permission to up link the letter, or to do whatever you want with it. Darrol Draper

jf10zl@intio.or.jp wrote: > Dear Darrol > Please give me a permission to > up link following your letter on my home page. > Kaz > > ---------- >

From: Darrol Draper[SMTP:dfdraper@ix.netcom.com] > Sent: Thursday, October 14, 1999 0:38 > To: jf10zl@intio.or.jp > Subject: Comments on "99.noise killer for the car" > > Hi, > > You have one of the most interesting amateur radio websites. I have > been looking at different pages from it, for over a year. I like your > "perverse fellow" attitude, where you do things just to see if it can be > done. I would never have thought of using a 6BE6 for an IF Amp, but it > makes perfect sense, really. > > One of your circuits can be improved a lot. "99.noise killer for the > car" uses two separate choke coils. It would work much better if you > put two windings on one core. Here is why: > (1) You don't need the second core. That cuts the weight. > (2) If the cores saturate because of too high DC ampere-turns, you > don't have a choke, you have a resistor. When you put both windings on > one core, the DC currents on the two wires cancel each other out. The > total DC current then becomes 0 A, and you don't have to worry about > saturation. > (3) If the two wires are twisted together before making the coil, then > you get capacitance between the two wires. (In fact, you get a > transmission line.) This capacitance also works to block out the QRM > from the car's electrical system. This could be important, because the > ESR of the electrolytic capacitors is not good at HF or VHF. > > You have a great web site. > > Darrol Draper


ノイズキラー(雑音低減器)
私は、車で近くの山や峠に移動して運用する事が多いのですが、車のシガライターから電源を取ると、点火雑音や発電機雑音が受信時に邪魔になる事がおおく、ノイズキラーを作りました。簡単なLCフィルターです。2個のトランスは、ジャンクの電源基板のフライホイール用トランスで、詳細は不明です。巻き線の太さは0.8mm、トランスの大きさは、5球スーパーの出力トランス程度です。多分100V:12V(2A)の電源トランスの12V側で代用可能でしょう。コンデンサーは24V1000μです。車の電源は12Vでも、時々大きな電圧になるので、24V程度を使いましょう。箱は、100円のお弁当箱です。
